Sockets and Bockets 4

Welcome to part 4 #

If you were looking forward to some exciting new F# code this time your going to be disappointed, however if you are like me and like looking at graphs and stats and digging in deeper into the code then your going to enjoy this, lets get started…

I set up a 5 minute test with 50 clients connecting to the server with a 15ms interval between each one.  Once connected each client receives a 128 byte message from the server every 100ms so this will be a 500 messages per second test.  I am going to be using an excellent product called YourKit Profilerfor .NET it can do both memory and CPU profiling as well as displaying telemetry for things like thread count, stack contents, memory allocations etc.  It can be configured to be a lot less intrusive than a lot of other profilers and I have had a lot of success using it.  You can download a demo from their site using the link above.  I will be doing some other articles on using profiling and analysis tools later on so stay tuned for those too.  All of the graphs and information gathered in this post come from YourKits output during CPU and memory profiling.

Before we start here’s a reminder of what the client code looks like, this is a simple test client using Brian’s code as mentioned in Part1 I have highlighted the lines that have changed below.

    open System.Net
    open System.Net.Sockets
    let quoteSize = 128
    type System.Net.Sockets.TcpClient with
      member client.AsyncConnect(server, port, clientIndex) =
        Async.FromBeginEnd(server, port,(client.BeginConnect : IPAddress * int * _ * _ -> _), client.EndConnect)
    let clientRequestQuoteStream (clientIndex, server, port:int) =
      async {
        let client = new System.Net.Sockets.TcpClient()
        do!  client.AsyncConnect(server,port, clientIndex)
        let stream = client.GetStream()
        let! header = stream.AsyncRead 1 // read header
        while true do
          let! bytes = stream.AsyncRead quoteSize
          if Array.length bytes <> quoteSize then
            printfn "client incorrect checksum"
    let myLock = new obj()
    let clientAsync clientIndex =
      async {
        do! Async.Sleep(clientIndex*15)
        if clientIndex % 10 = 0 then
          lock myLock (fun() -> printfn "%d clients..." clientIndex)
          do! clientRequestQuoteStream (clientIndex, IPAddress.Loopback, 10003)
        with e ->
          printfn "CLIENT %d ERROR: %A" clientIndex e
          //raise e
    Async.Parallel [ for i in 1 .. 50 -> clientAsync i ]
      |> Async.Ignore
      |> Async.Start
    System.Console.ReadKey() |> ignore

CPU and threading performance #

First of all lets look at the CPU results from the IAsync pattern:

Heres the same run from the SAEA pattern:

You can see that both the number of threads and the amount of CPU is a quite a lot less in the SAEA pattern.  The spike at the beginning is the allocation of buffers for the BocketPool.

Now lets move on to memory and garbage collection.

Memory Allocation #

Here’s a graph of the heap and process memory allocation in the IAsync pattern, green is generation 0, blue is generation 1 and orange is the large object heap.  There’s also red for generation 2 but the results are behind the others and they are only small 0,2 MB peaks at 5 to 15 second intervals.

Heres the same but for the SAEA pattern, there are red peaks every 10- 20 second intervals of 0.2MB hidden under the others.

As you can see the heap memory is around half the size and the process memory is 15MB less.

Memory Hotspots #

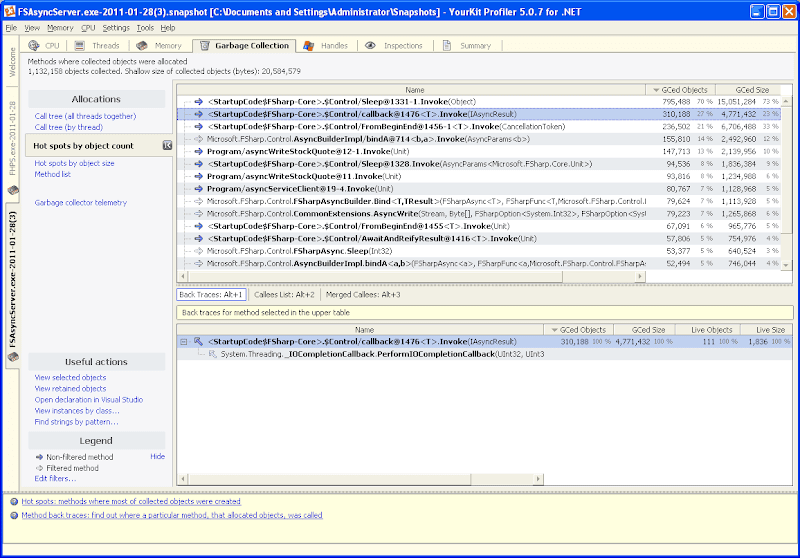

Finally here’s a couple of screen shot of the hot spots for memory allocations in both implementations

You can clearly the IAsync allocations are not present in the SAEA implementation and there are 310,188 of them, that’s 27% of the total garbage!

Final thoughts #

The SAEA pattern definitely cuts down on memory and CPU usage, yes it adds a lot of complexity but if your application is dealing with a very high volume of traffic or clients and you need optimal performance then I think its the way to go.

The optimisations don’t stop there either, if you think about it the receive Bocketpool is not even used here, if we collapsed all of the BocketPools into a single contiguous store then we would use even less resources, this means we could support even more clients or throughput.  In a typical high volume scenario you are looking at doubling your throughput or number of client connections.

There’s definitely a lot more or interesting things to explore in this area.

As usual any comments are welcome.

See you next time…
